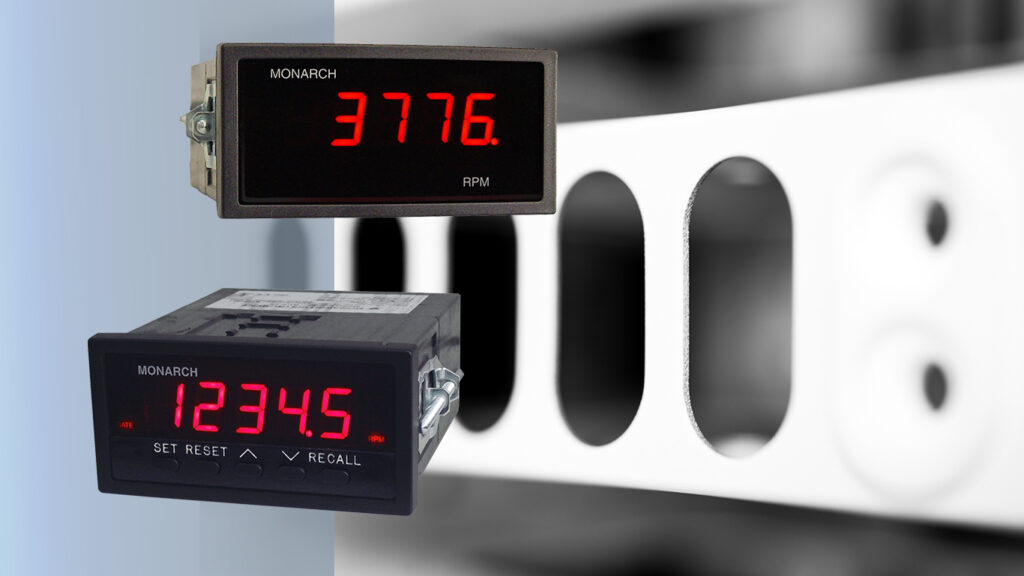

Panel Tachometers by Monarch Instrument

Panel Tachometers for Precision Measurement & Counting!

The ACT Series of Panel Tachometers/Totalizers are versatile 1/8 DIN size devices with a speed measurement range from 5 to 999,990 RPM.

ACT-1B Panel Tachometer and ACT-3X Panel Tachometer/Totalizer are reliable, highly accurate DIN rail mounted devices that measures speed.

Monarch Instrument’s ACT Series Panel Tachometers consists of two models. The ACT1-B is a tachometer and the ACT-3X is a tachometer/ratemeter/totalizer. Both feature inputs for two and three wire sensors providing signals of 0-5 V TTL or 0.1 Vac to 0-50 Vac. Compatible with all Monarch Instrument -W (tinned wire termination) sensors, both devices display in fixed or floating decimal point format.

Both ACT Panel Tachometers can be factory configured to meet your specifications or user-configured onsite with the optional USB Programming Cable. The USB Programming Cable and free downloadable PM Remote Software also allow real-time display and recording of data on a local PC

Pocket Laser Tach 200 Tachometer (PLT200) is a digital, battery-powered portable optical tachometer, which operates up to 25 feet* [8 meters] from a reflective target using a Class 2 laser light source. The ergonomic design allows safe, direct line-of-sight viewing of both the target and the display at the same time while providing a non-slip rubber surface for single-hand operation. NIST Traceable Certificate

ACT-3X Panel Tachometer/Totalizer

The ACT-3X Panel Tachometer is an extremely versatile instrument. The user has complete control of the unit configuration. Power may be either 115 – 230 Vac (50/60 Hz), or optionally, 12 Vdc or 24 Vdc. Input signals are accepted (on Channel 1) from optical, proximity, magnetic, infrared or laser sensors, or direct TTL or external AC sources. A second AUXiliary input (Channel 2) may be used for instrument control and remote resetting. There are several remote communication options – RS232, USB or Ethernet and the optional remote software can be used to program the unit or display data locally. The unit is suitable for panel mounting or bench top use, with convenient screw terminal connections on the rear panel of the instrument.

NIST Traceable Certificate is included.

Select ACT-3X
Pocket Tach 99 is a digital, battery-powered portable non-contact optical tachometer (red LED), which operates up to 36 inches from a reflective tape target using an LED light source. The ergonomic design allows safe, direct line-of-sight viewing of both the rotating target and the display at the same time while providing a non-slip rubber surface for single-hand operation.

ACT-1B Panel Tachometer

The ACT-1B is an economical and easy-to-use digital tachometer that displays rotational speed directly in RPM or RPS on a 5-digit red 0.56″ high LED display using a speed sensor providing a single (or multiple) pulse(s) per revolution. The number of pulses per rev is factory set at time of ordering and can be user programmed from 1 to 999 using the
optional USB Programming Cable and PM Remote Software. Power may be either universal 100 to 240 Vac (50/60Hz), or optionally, 12 Vdc or 24 Vdc isolated. The ACT-1B accepts input signals from optical, proximity, magnetic, infrared or laser sensors, or direct TTL or external ac inputs. The ACT-1B is suitable for panel mounting or benchtop use with convenient screw terminal connections on the rear panel of the instrument.

Available with NIST Traceable Certificate

Select ACT-1B
