4 Powerful Features that Set the Nova-Pro® 500 Apart from Standard LED Stroboscopes

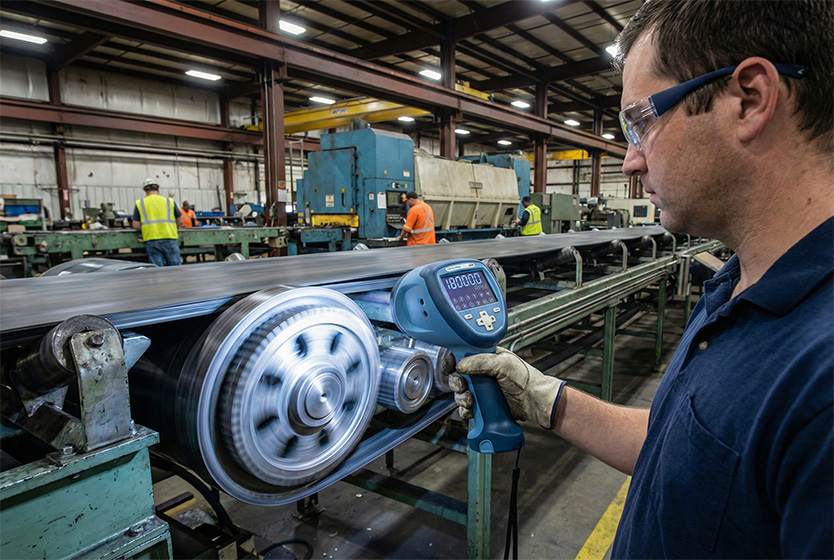

The Nova-Pro® 500 LED Stroboscope/Tachometer is Monarch Instrument’s most advanced handheld LED stroboscope with patented, dual-action, Ultra-bright LED Stroboscope and Laser Tachometer technology combined in a single system, engineered to deliver unparalleled precision and versatility for your motion analysis needs.
The Nova-Pro® 500 includes advanced features not found on standard LED stroboscope models, most notably phase delay, time delay and virtual slow motion capabilities. See how these features can make all the difference for your application.
1. Internal Phase Shift
Rotate the strobed image electronically without physically moving your equipment or the strobe unit. With precise phase adjustment from 0 to 359.9 degrees, you can examine any specific point in a rotation or reciprocating cycle with incredible detail.
Real-world applications
- Inspect various positions on rotating parts (gears, pulleys, cams) for wear or defects
- Examine print registration on web processes at exact repeat lengths
- Analyze valve timing and piston position in engines
- Study cam profiles and follower interaction at any angle
- No need for external phase controllers or manual repositioning
2. Phase Delay
Introduce precise, controlled delays between multiple strobes or synchronized equipment for complex motion analysis. Program exact delay times to coordinate flash timing across your entire process.
Real-world applications
- Synchronize multiple Nova-Pro units to view various stages of the same process simultaneously
- Coordinate strobe timing with production line equipment for quality inspection
- Create phantom “freeze-frame” sequences to track part movement through multiple stations
- Analyze phase relationships between interconnected rotating components
Perfect for packaging lines, printing presses, and automated assembly systems
3. Time Delay
Trigger the strobe at precise intervals after receiving an external signal. Set delays from microseconds to seconds to capture exactly the moment you need to see in your high-speed process.
Real-world applications
- Triggered inspection of parts after a sensor detects position
- Synchronized testing with production equipment
- Capture specific events in automated processes
- Integration with quality control systems
4. Virtual RPM (Slow Motion Effect) with VRPM/Autorotation
Transform impossibly fast motion into clearly visible slow motion, all while your equipment runs at full speed. By adjusting the flash rate slightly above or below the actual speed, you can view high-speed components rotating slowly forward or backward, making detailed inspection safe and easy.
How it works
Set a flash rate slightly different from the actual RPM, and watch your rotating equipment appear to move in slow motion. The auto-rotation feature continuously advances the strobed image, letting you inspect the entire circumference of rotating parts without manual adjustment.
Real-world applications
- Inspect fan blades, impellers, and turbine components while running at operational speed
- Examine printing cylinders and detect registration errors without stopping the press
- Study cutting tool engagement and chip formation in machining operations
- Analyze belt tracking and pulley alignment on conveyors under load
- Observe packaging machinery cams, gears, and linkages during production
- Detect cracks, wear patterns, or defects on high-speed rotating shafts
- Safety advantage: Inspect dangerous high-speed equipment without shutdown or physical proximity
The Power of Autorotation
Unlike static strobe inspection, the autorotation feature automatically “walks” the image around the full rotation, ensuring you do not miss defects that might be hidden at a single-phase angle. It is like having X-ray vision for your rotating equipment.
Standard Nova-Pro® 500 LED Stroboscope/Tachometer Features
Ergonomic Lightweight ABS IP54 Rated Design
Built for the real world. The rugged IP54-rated housing protects against dust and water splashes, while the lightweight ABS construction ensures comfortable handling during extended use. Take it anywhere, from the factory floor to outdoor installations.
External Triggers (Input/Output TTL Jacks)
Synchronize the Nova-Pro 500 with external equipment for advanced testing and automation. Perfect for integration with PLCs, data acquisition systems, and other instrumentation.
Tach Mode with Integral Laser & Laser Dock
Switch seamlessly between strobe and non-contact tachometer modes. The built-in laser provides accurate RPM measurements up to 250,000 RPM, and the convenient laser dock allows you to remotely locate the laser.
Programmable Memory (10 Setpoints)
Store up to ten (10) frequently used settings for instant recall.
Save time and ensure consistency across multiple measurements and applications. Whether you’re troubleshooting machinery, conducting quality inspections, or performing predictive maintenance, the Nova-Pro 500 gives you the power and flexibility to get the job done right
See the Nova-Pro® 500 in Action
Ready to see these advanced features in action? Watch our full video demonstration to see for yourself!
