6180-020 Self-Powered Sensor (SPSR) with kit with interchangeable batteries provides the required power to any one of Monarch's sensors. Kit includes SPSR sensor, ROS-P sensor and recharger.

SPSR-IM Interface Module – configuration with Monarch Instrument Magnetic Sensors, ROS-P Sensor, IRS-P Infrared Sensor...

PN: 6150-020 SPSR-115/230 Kit includes: SPSR-IM, SPSR-U Universal Power supply/recharger, ROS-P Remote Optical Sensor, and 12 inches of Reflective Tape

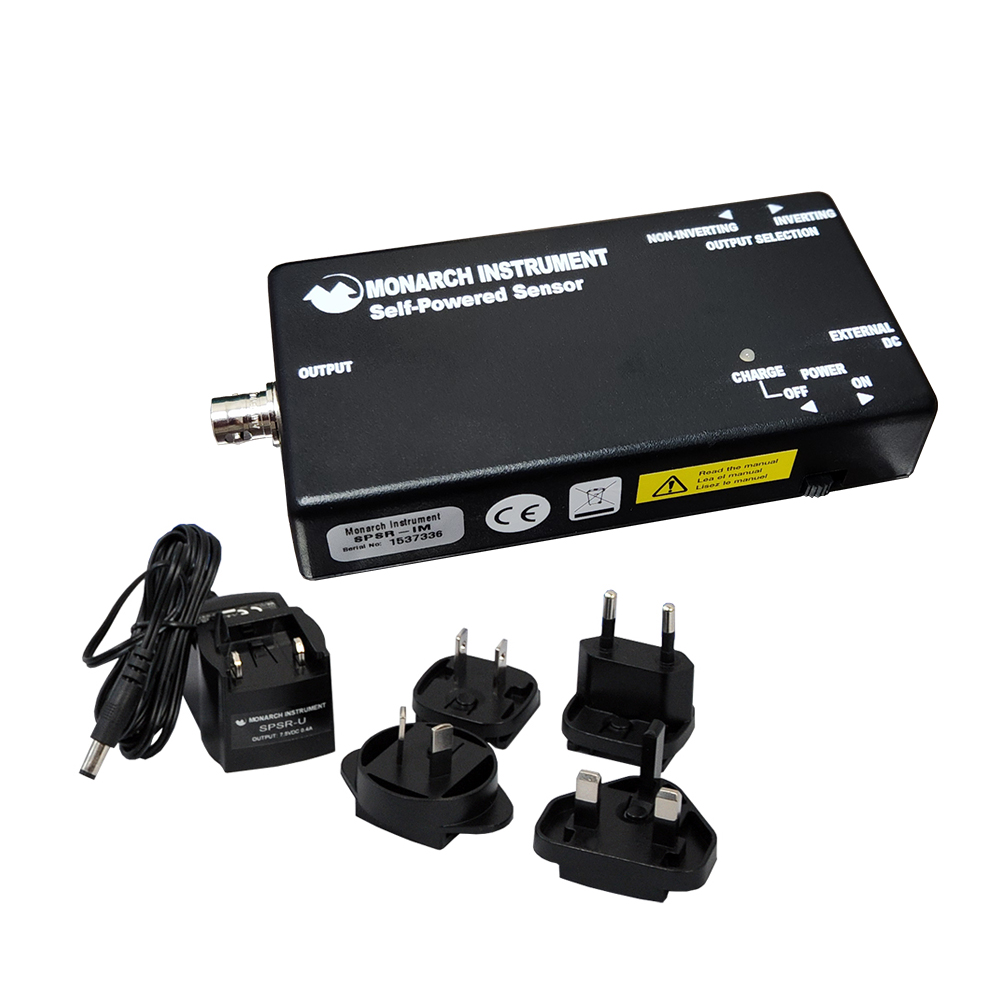

SPSR-IM (module only) includes: Interface Module with SPSR-U 115/230 Vac power supply/recharger; SENSOR MUST BE ORDERED SEPARATELY

SPSR Self-Powered Sensors

PN: 6150-020

Brand: Monarch Instrument

$289.00 – $450.00

Sensor Models

SPSR-115/230

SPSR-IM

Recommended Accessories

View All Accessories

AC Power Supply/Recharger for SPSR Self-Powered Sensor

$47.00

Add to cart
ROS – Remote Optical LED Sensor

$171.00 – $193.00

Select options
Replacement Battery Pack for SPSR-IM

$40.00

Add to cart
DIN Output Cables for Smart Laser Sensor

$36.00

Add to cart

Detailed Description

The unique SPSR Self-Powered Sensor with internal rechargeable batteries provides the required power to any one of (4) Monarch Sensors (see below). The TTL compatible output is switch selectable as either positive going 0-5 V pulses or negative going 5-0 V pulses provided on a BNC connector. The internal rechargeable batteries provide 40 hours of operation between charges. For continuous operation, the SPSR can be powered by 115/230 Vac. Self-powered sensors are a critical element for providing one pulse per revolution for vibration analyzers, spectrum analyzers, stroboscopes, data acquisition equipment, tachometers, balancers, waveform analyzers, and magnetic tape recorders.

For convenience, the SPSR 115/230 includes our most popular sensor, the ROS-P. The SPSR-IM is the interface module only and can be paired with any of the following (4) sensors (ordered separately) to best suit your particular application:

A visible optical red LED light source (Model: ROS-P PN: 6180-057)

A visible optical red laser light source (Model: ROLS-P PN: 6180-029)

An infrared light source (Model: IRS-P PN: 6180-020)

An amplified magnetic sensor (Model: MT-190P PN: 6180-036)

Need help selecting the proper sensor for your application? We’re here to help! Contact Customer Service.

Specifications

Specifications* for the SPSR-IM Interface Module:

See the ROS-P Remote Optical Sensor page for product details.

Specification	Specification value
Internal Batteries	Internal Batteries Nickel metal hydride (NiMH) battery pack, 4.8 Vdc
Operating Interval	>40 hours typical with ROS-P (~40 mA load)
Charge Time	Up to 4 hours
Output	TTL compatible pulse, INVERTED or NON-INVERTED switch selectable With ROS (negative pulse) input, output will be a positive pulse when set to inverted or negative pulse when set to non-inverted; optionally, the output can be open collector (external pull-up required)
Bandwidth	0 to 100 kHz
Battery Current Draw	12 mA with kΩ load (operational)
7.5 V Input Current Draw	14 mA with kΩ load (operational)
Power Supply	SPSR-U (operational/charge)
LED Indicator	Status indication; see LED Indication section of the product manual
Output Connector	BNC connector (female)
Operating Temperature	32 °F to 122 °F (0 °C to 50 °C)
Weight	8.3 oz. (235 g)
Dimensions	5.0 in. x 2.5 in. x 1 in. [127 mm x 64 mm x 25 mm]
*Specifications are subject to change without notice.
