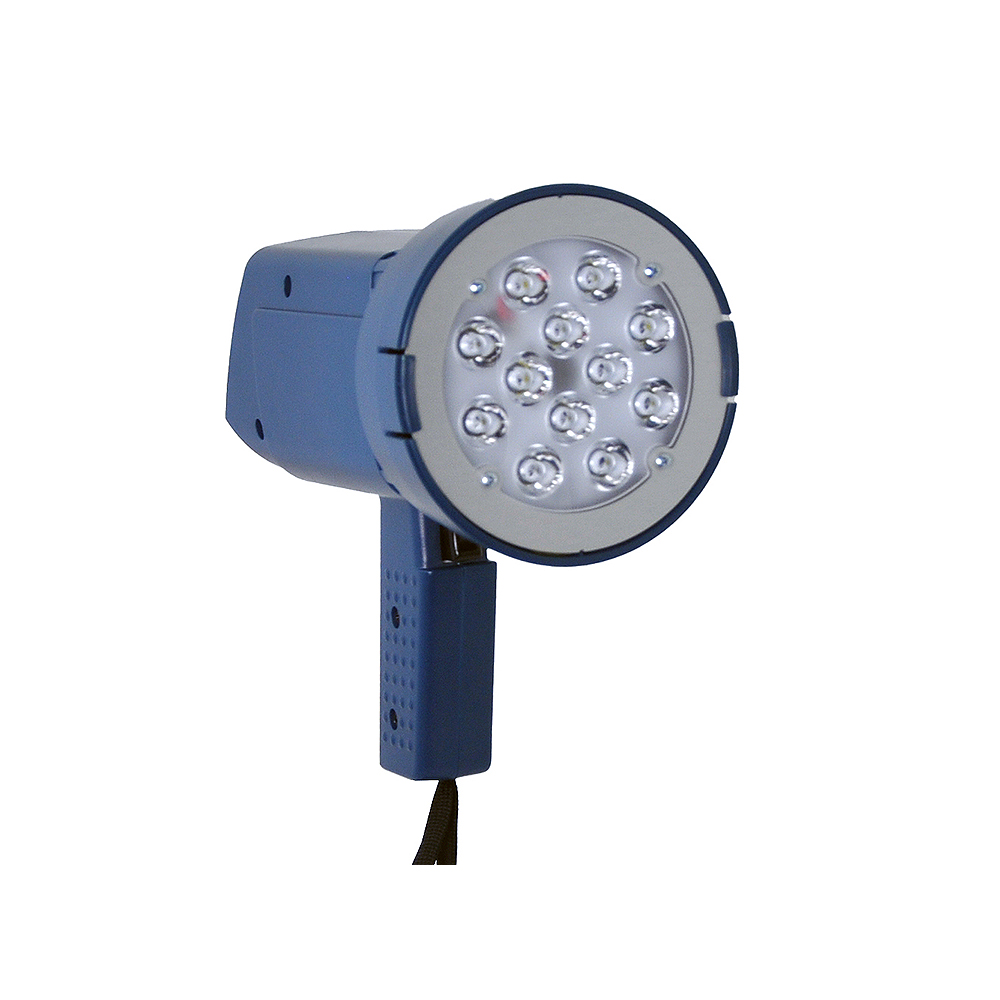

The Nova-Strobe Basic BBL LED (Light Emitting Diode) is a rugged industrial stroboscope that provides extremely bright, uniform light output for performing stop motion diagnostic inspection and RPM measurement. The unit has a pistol grip with lockable trigger switch and wrist strap for comfortable handheld operation or it may be mounted on a tripod using the integral ¼ -20 UNC thread at the base of the handle. Available with NIST Traceable Certificate
Nova-Strobe BBL Kit comes with Basic Battery LED Strobe, recharger and latching case.
BBL Strobe is a Nova-Strobe Basic Battery-operated LED Stroboscope that has an operating range of 30-500,000 flasher per minute. 6230-010 Monarch Instrument

The Nova-Strobe Basic BBL LED (Light Emitting Diode) is a rugged industrial stroboscope that provides extremely bright, uniform light output for performing stop motion diagnostic inspection and RPM measurement. The unit has a pistol grip with lockable trigger switch and wrist strap for comfortable handheld operation or it may be mounted on a tripod using the integral ¼ -20 UNC thread at the base of the handle. Available with NIST Traceable Certificate



Nova-Strobe BBL LED Stroboscope

PN: 6230-010
Brand:
$670.00 – $877.00

Features

View Full List
  • Flash Range: 30 to 500,000 FPM
  • Battery and PSC-2U Recharger included
  • Diagnostic inspection and RPM checks
  • Tripod mounting bushing (1/4-20) in the handle
  • CE marked and RoHS compliant
  • Flash rate may be displayed in Flashes per Minute (FPM) or flashes per second (Hz)
  • Digital backlit LCD
  • Adjustable brightness control
  • Lightweight industrial design

Benefits of LED

  • Energy efficient with long battery life (8-10 hours typical)
  • Extremely bright, uniform light output
  • Completely silent
  • Cool operation
  • No lamp replacements
  • Extremely high flash rates (up to 500,000 FPM)

Recommended Accessories

View All Accessories

Details Description

BBL Basic models include Stroboscope with a universal 115/230 recharger with interchangeable wall plugs and an instruction manual.

The Monarch Nova-Strobe™ LED family of rugged industrial stroboscopes provides an extremely bright, uniform light output for performing stop-motion diagnostic inspection and RPM measurements. The twelve LED light source is extremely efficient which means long battery life and continuous cool operation. A wide operating range of 30-500,000 flashes per minute covers all applications.

The Basic BBL is designed for simple stop-motion inspection and RPM measurement applications.

To see the latest in portable stroboscope technology, take a look at the Nova-Pro 100!

Features

  • Flash Range: 30 to 500,000 FPM
  • Battery and PSC-2U Recharger included
  • Diagnostic inspection and RPM checks
  • Tripod mounting bushing (1/4-20) in the handle
  • CE marked and RoHS compliant
  • Flash rate may be displayed in Flashes per Minute (FPM) or flashes per second (Hz)
  • Digital backlit LCD
  • Adjustable brightness control
  • Lightweight industrial design

Benefits of LED

  • Energy efficient with long battery life (8-10 hours typical)
  • Extremely bright, uniform light output
  • Completely silent
  • Cool operation
  • No lamp replacements
  • Extremely high flash rates (up to 500,000 FPM)

Specifications

Specifications* for the Nova-Strobe BBL LED Stroboscope:
SpecificationSpecification value
Flash Range30-500,000 FPM, 0.5 to 8333.33 Hz
Flash Rate Accuracy0.01% of setting or ± 1 last digit
Flash Rate Resolution0.01 to 1 FPM, 0.1 FPM resolution above 9,999.99 FPM, 1 FPM resolution above 99,999.9
Display Update RateInstantaneous
Light Source12 LED array
Light OutputAverage: 3000 lumens @ 6000 FPM 12 in. from lens
Flash DurationAdjustable 0.5 to 3000 μs or 0.2 to 14 degrees of rotation (auto adjust with flash rate)
DisplayLCD with 6 numeric 0.506 in. [12.85 mm] high digits and 5 alphanumeric 0.282 in. [7.17 mm] high digits
IndicatorsBattery level
Knob AdjustmentDigital rotary switch with 36 detents per revolution; velocity sensitive
Time BaseUltra-stable crystal oscillator
Power Supply – BatteryInternal NiMH rechargeable batteries with 115/230 Vac 50/60 Hz recharger
Run Time12 hours typical @ 6000 FPM and 2.8° pulse width with fully charged batteries
Charge Time4-5 hours typical with supplied recharger
Weight1.9 lbs. (860 g)
DimensionsBody: 9 in. x 3.66 in. x 3.56 in. [229 mm x 93 mm x 90 mm];
Reflector Housing: 4.8 in. [122 mm] dia.;
Handle: 4.254 in. [108 mm long]
SafetyThis product is designed to be safe for indoor use under the following conditions (per IEC61010-1).
Operating Temperature32-104 °F (0-40 °C)
HumidityMaximum relative humidity 80% for temperature up to
88 °F (31 °C) decreasing linearly to 50% relative humidity at 104 °F (40 °C)
ComplianceCE compliant. Low Voltage Directive (LVD) 2014/35/EU
Electromagnetic Compatibility Directive (EMC) 2014/30/EU
Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
Energy Efficiency Nova-Strobe BBL units with Firmware Revision 0.95 and higher are compliant with the U.S. Department of Energy’s energy conservation standards specified in the Code of Federal Regulations 10 CFR 430.32(z) and are registered in the DoE CCMS database.
*Specifications subject to change without notice.

What's in the box?

Nova-Strobe BBL (6230-010) includes:

Nova-Strobe and PSC-2U universal 115/230 recharger with interchangeable USA, UK, AUS, and Euro adapter wall plugs

  • Documentation: operation manual and product registration card
Nova-Strobe BBL with NIST Certification (6230-010-NIST) includes:

Nova-Strobe and PSC-2U universal 115/230 recharger with interchangeable USA, UK, AUS, and Euro adapter wall plugs

  • Documentation: operation manual, product registration card, and NIST Traceable Certificate
Nova-Strobe BBL Kit (6230-011) includes:

Nova-Strobe and PSC-2U universal 115/230 recharger with interchangeable USA, UK, AUS, and Euro adapter wall plugs

  • Ships in a standard plastic molded carry case
  • Documentation: operation manual and product registration card
Nova-Strobe BBL Kit with NIST Certification (6230-011-CAL) includes:

Nova-Strobe and PSC-2U universal 115/230 recharger with interchangeable USA, UK, AUS, and Euro adapter wall plugs

  • Ships in a standard plastic molded carry case
  • Documentation: operation manual, product registration card, and NIST Traceable Certificate

Shipping Codes

Harmonized Tariff Code:  9029206000

Country of Origin:  US

Export Control Classification Number (ECCN):  EAR99
