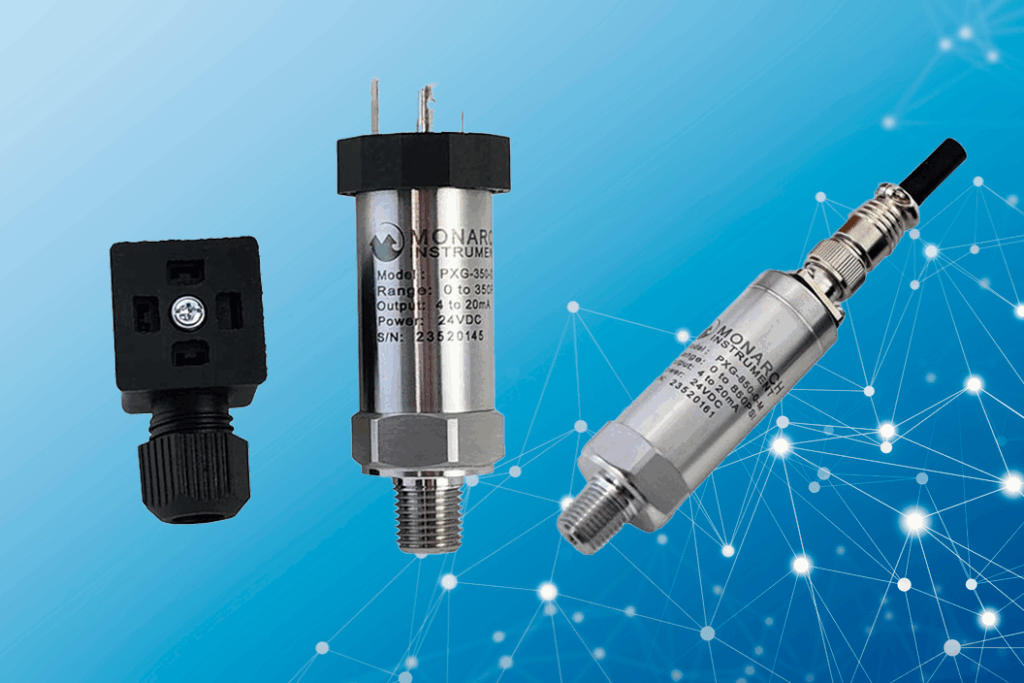

Universal Pressure Transmitters
These devices sense applied pressure and convert it into a standardized electrical output signal for transmission.
Four Pressure Ranges Readily Available
The PX Universal Pressure Transmitter Series uses a diffused silicon pressure sensor to sense an applied pressure. Through internal application-specific integrated circuits (ASIC), a millivolt signal is converted and transmitted into a standardized electrical output signal, such as 4-20 mA. This output can be directly used by control systems or data acquisition equipment (such as Monarch Instrument’s DataChart™ DC1250). The compact, lightweight design is easy to install. Simply connect the device directly to a computer interface card, control instrument, smart meter, or PLC. Long-distance transmission can use current output.

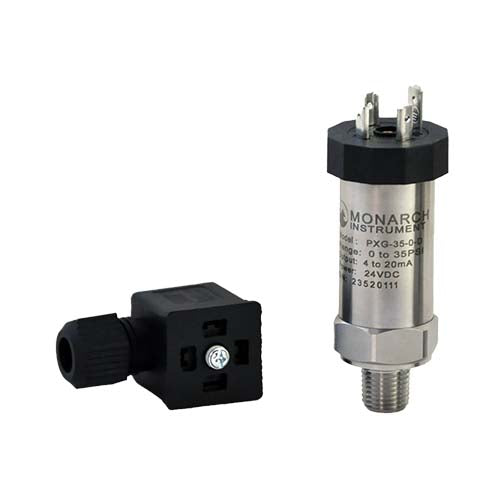

PXG Universal Pressure Transmitter Gauge, 0-35 PSI
The PXG-35 Universal Pressure Transmitter Gauge measures 0-35 PSI and has a 1/4″ NPT connection and 4-20 mA output with either DIN 43650 or M12 connection. NIST Traceable Certificate is available. Additional pressure ranges (including Absolute), output options, and electrical connections are available upon request. Contact Monarch Instrument for details.

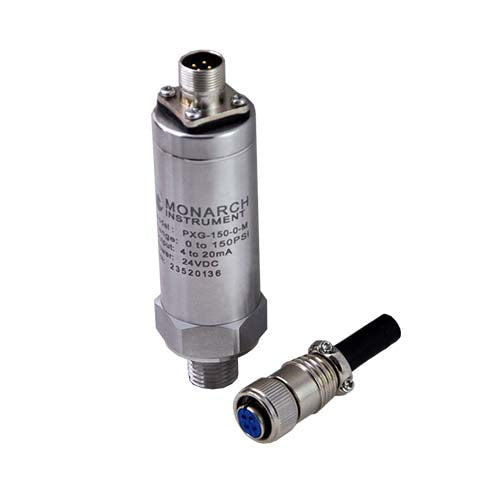

PXG Universal Pressure Transmitter Gauge, 0-150 PSI
The PXG-150 Universal Pressure Transmitter Gauge measures 0-150 PSI and has a 1/4″ NPT connection and 4-20 mA output with either DIN 43650 or M12 connection. NIST Traceable Certificate is available. Additional pressure ranges (including Absolute), output options, and electrical connections are available upon request. Contact Monarch Instrument for details.
PXS Universal Pressure Transmitter Sealed Gauge, 0-850 PSI
The PXS-850 Universal Pressure Transmitter Sealed Gauge measures 0-850 PSI and has a 1/4″ NPT connection and 4-20 mA output with either DIN 43650 or M12 connection. NIST Traceable Certificate is available. Additional pressure ranges (including Absolute), output options, and electrical connections are available upon request. Contact Monarch Instrument for details!

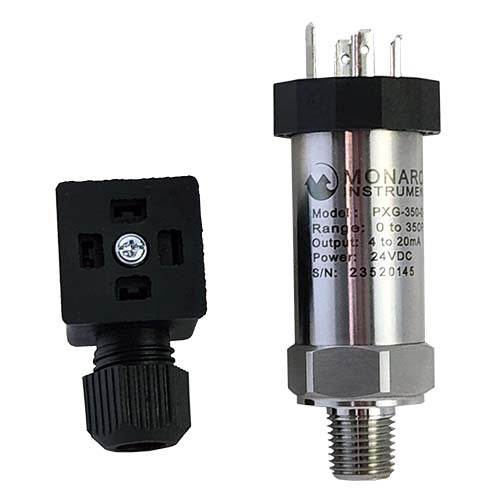

PXG Universal Pressure Transmitter Gauge, 0-350 PSI
The PXG-350 Universal Pressure Transmitter Gauge measures 0-350 PSI and has a 1/4″ NPT connection and 4-20 mA output with either DIN 43650 or M12 connection. NIST Traceable Certificate is available. Additional pressure ranges (including Absolute), output options, and electrical connections are available upon request. Contact Monarch Instrument for details.
