What is a Paperless Chart Recorder?

A paperless chart recorder is a digital device that receives, displays, and stores data such as temperature, flow, and pressure, digitally – without paper. With the saved data, these units offer enhanced analysis, viewing and security.

What are the Benefits of a Paperless Chart Recorder?

The shift from traditional paper-based chart recorders to paperless digital systems in 2026 offers transformative benefits in efficiency, security, and cost-effectiveness.

1. Enhanced Data Accuracy & Integrity

• Elimination of Mechanical Errors: Digital recorders use solid-state construction, removing risks like pens drying out, paper jams, or mechanical failures that lead to data gaps.
• High Precision: They provide superior accuracy (often less than ±0.1% inaccuracy) and high-resolution displays that eliminate the “eyeballing” errors common with reading physical charts.
• Tamper-Proof Records: Data is often saved in secure, encrypted binary file formats, ensuring it cannot be easily altered or falsified.

2. Superior Regulatory Compliance

• Automated Audit Trails: Systems can automatically track every change, calibration, and user access, which is critical for meeting standards like 21 CFR Part 11 in the food and pharmaceutical industries.
• Digital Signatures: Authorized operators can apply electronic signatures to data, streamlining validation processes for highly regulated sectors like aerospace.

3. Remote Access & Operational Efficiency

• Real-Time Monitoring: Ethernet and Wi-Fi connectivity allow operators to view live process data from a web browser or mobile device, eliminating the need for physical on-site inspections.
• Instant Data Retrieval: Unlike physical files that may require hours to find in a warehouse, digital records are searchable by date, batch number, or alarm event.
• Automated Notifications: Systems can send real-time email or SMS alerts if process parameters (like temperature or pressure) exceed safety limits.

4. Significant Cost & Space Savings

• Reduced Consumables: They eliminate the recurring costs of specialty paper, ink ribbons, and pens—which can often exceed the initial cost of the recorder over its life.
• Storage Optimization: Digital systems replace massive filing cabinets with compact memory cards or server storage, freeing up valuable floor space.
• Sustainability: Reducing paper consumption minimizes the environmental footprint by decreasing deforestation and waste.

Primary Early Adopters of the Paperless Chart Recorder

• Petrochemical and Oil & Gas: Historically the first major adopter, this industry transitioned in the 1990s to replace fragile mechanical pen-recorders that were prone to damage in harsh environments. Today, they use digital chart recorder systems to track pressure, flow, and temperature in pipelines and processing plants.
• Pharmaceuticals: Currently the fastest-growing segment, driven by the need for secure, tamper-proof audit trails required for FDA 21 CFR Part 11 compliance.
• Food and Beverage: Early adoption was motivated by safety regulations (HACCP) to monitor sterilization, pasteurization, and cold-chain storage conditions to ensure product quality and safety.
• Power Generation & Utilities: Power plants (nuclear, coal, and renewable) were early users because of the need for millisecond-precision recording of events to prevent cascading failures in critical infrastructure.

Specialized & Emerging Adopters of the Paperless Chart Recorder

• Aerospace and Marine: These sectors adopted “paperless course recorders” early to digitize critical navigation and flight data, replacing manual logs for maintenance and investigation purposes.
• Metal Processing & Heat Treating: Industries like aerospace manufacturing use them for thermal uniformity surveys to meet strict quality standards like AMS2750.

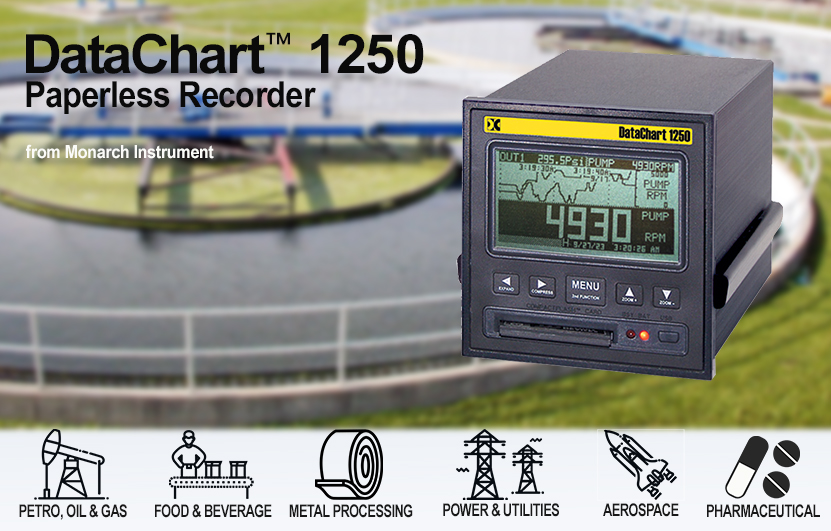

The DataChart™ DC1250 Paperless Chart Recorder, The Smart Choice in Digital Recording

The DataChart™ DC1250 paperless chart recorder is a feature-rich digital recording system designed for flexibility, accuracy, and value. It offers two universally configurable inputs capable of measuring DC voltage, DC current, thermocouples, RTDs, as well as frequency and pulse signals.

Standard features include four internal alarm setpoints, two alarm relay outputs, and one digital control input—providing reliable monitoring and control right out of the box. Its compact size combined with powerful functionality makes the DataChart™ DC1250 an economical solution for a wide range of data recording applications.

A maximum sample storage rate of 100 samples per second can be set for both channels allowing for capture of short duration process signals anomalies. CompactFlash™ cards up to 2 Gigabyte size can be used allowing many data points to be stored over long periods of time.

With intuitive operation, flexible input configuration and large memory capability, the DataChart 1250 is a powerful, compact digital recorder.

Features of the DC1250 Paperless Chart Recorder

Communication – Ethernet or USB

Utilizing the Navigator Software, the user has full remote control of all recorder functions. Data can be transferred from the CompactFlash™ card to the PC or can be viewed in real-time graphic format and stored to a remote hard drive.

Bright and Clear Display

The DC1250 has a highly reflective LCD with a bright white LED backlight. The graphic user interface can be configured to display real time data in digital or trend format. Configuring the 1250 is an intuitive process which uses an easy to follow menu system.

Measure RPM

The DC1250 can be used in conjunction with many of Monarch Instrument’s speed measurement sensors. Power for sensors is provided from the DC1250 rear terminals. Measure, display and record RPM range from 5 – 600,000. Choose the sensor best suited for your application or take your existing signal directly into the DC1250. These include sensors to measure gas concentration, temperature, humidity, light intensity, flow meters, weight and many others.

Versatile Power

The DC1250 is supplied with a universal wall transformer power supply that can operate from 100 to 240 Vac 50/60Hz. It includes interchangeable plugs for North America, Australia, UK and Europe.

An optional isolated input power of 12-24 Vdc is also available for use with instrument power supplies or external batteries.

The DC1250’s real-time clock and internal RAM have a battery back-up to preserve data in the event of power loss.

If losing data during a power outage is a concern, the user can add the rechargeable battery pack option. With the battery pack option installed, the DC1250 automatically keeps the rechargeable NiMH batteries charged to capacity. In the event of a power loss, the DC1250 automatically switches over to internal battery power. All functions continue to operate as normal for up to 6 hours! This option is also great for using the DC1250 in areas where no AC or DC power is available.

Navigator Software

DataChart™ Navigator Software makes reviewing, printing and exporting data easier than ever. Simply start the program, double click the data file and Navigator does the rest. Your data file is displayed in one graphic window complete with the scales as programmed in the DC1250 as well as date and time stamps. You can expand, compress or use the box zoom to display specific areas of data as needed. The print preview feature allows review prior to printing.

With the optional USB or Ethernet communications, Navigator turns your computer into a real-time data acquisition system as graphical data is streamed in and displayed. These “snapshot” files can be saved in addition to files being stored on the DC1250. The built in Ethernet webserver allows you to view real-time data using only a web browser. Exporting data is as simple as clicking the Excel™ Icon in the Data table export window. Navigator automatically converts the historic data, starts up Excel™ and loads your data into an organized spreadsheet. Minimum system Requirements: PC running Windows® 11.

DataChart™ DC1250
Paperless Chart Recorder

• Eliminate paper charts and manual recordkeeping
• Improve accuracy and data integrity
• Simplify audits and regulatory compliance
• Enable remote access and long-term data storage
