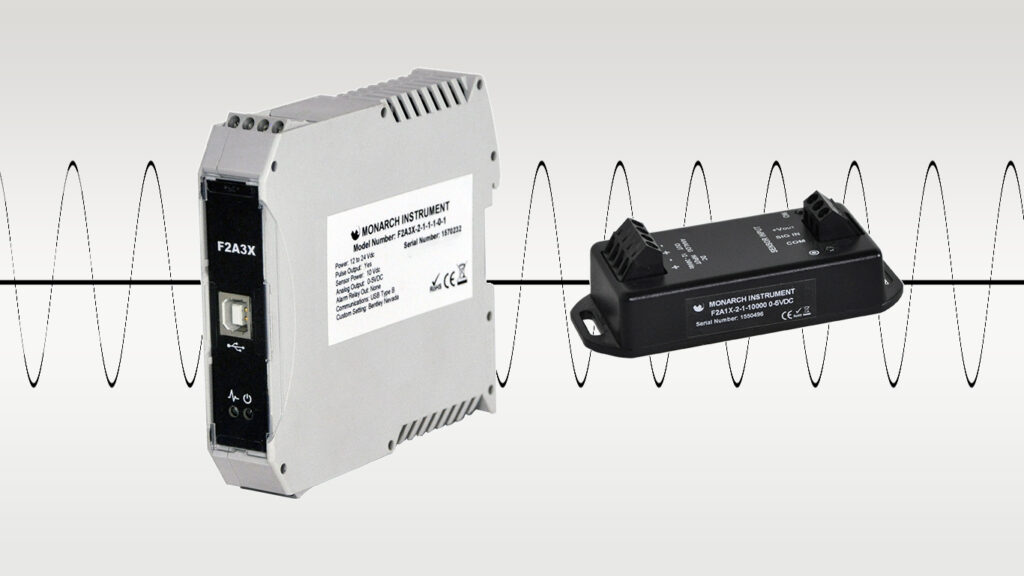

Frequency to Analog Converter by Monarch Instrument
F2A Series makes it easy! Convert frequency input signal into a proportional analog voltage or current output.
Panel Meter Remote Software Included!
PM (Panel Meter) Remote Software is a Windows-based software application that allows the user to customize the configuration of the F2A1X and F2A3X. Set the mode of operation to RPM, RPS, Frequency, Totalization, Single Event Capture or Rate of Change and select the input scale (pulses per revolution). In addition, the decimal places displayed can be selected as well as the output scale of the optional analog output modules.
All the operational settings of the F2A3X Frequency to Analog Module can be set remotely using the PM Remote PC Software using a USB or Ethernet Connection as ordered. Settings that can be programmed include input scaling, analog output full scale and offset, input pulse polarity and update rate and alarm settings. In addition, you can view real time data on the PC – refer to the PM Remote manual and help screen.
F2A3X Frequency to Analog Converter / Tachometer
The F2A3X Frequency to Analog Converter is a DIN rail module that converts a frequency input signal into a proportional analog voltage (0-5 Vdc) or current (4-20 mA) output. The output signal is electrically isolated from the input signal and input power source, effectively eliminating troublesome ground loops. The input signal can be supplied from a Monarch sensor (measuring RPM for example) or any source of digital signal not exceeding 12 volts. The F2A3X is completely user-programmable using the free downloadable PM Remote Software.
NIST Traceable Certificate is included.
F2A1X Frequency to Analog Converter Module
The F2A1X Frequency to Analog Module converts a frequency input signal into a proportional analog voltage (0-5 Vdc) or current (4-20 mA) output. The output signal is electrically isolated from the input signal and input power source, effectively eliminating troublesome ground loops. The input signal can be supplied from a Monarch sensor (measuring RPM for example) or any source of digital signal not exceeding 12 volts. The F2A1X is factory pre-programmed with the full-scale output and input scale factor of your choice. These settings are also user-configurable with the optional USB Programming Cable and downloadable PM Remote Software.
Available with NIST Traceable Certificate
